PRODUCTS INFO

THE STANDARDS OF HYUPSHIN PROVIDES FLANGES:

· ANSI B16.5/B16.47/16.1 flange »
· DIN standard flange »
· UNI standard flange »
· BS 4504/10 T D/E flange »
· EN 1092-1 standard flange »
· JIS B2220 standard flange »
· KS B1503 standard flange »

· SABS 1123 standard flange »
· GOST 12820/12821 flange »
· API standard flange »
· MSS SP44 standard flange »
· AWWA standard flange »
· Reducer pipe flange »
· Tube Sheets »

Tolerance according to requirements, minimum ± 0.10.

Range of size : DN10-DN2000.

Maximum 1200 Tons for monthly production.

FLANGE TYPES :

· Plate/Plane flange
· Blind flange
· Slip-On flange
· Welding Neck flange

· Lap Joint flange
· Threaded flange
· Socket Welding flange
· RTJ flange

Jinan Hyupshin Flanges Co., Ltd produces forged and seamless rolled flanges with 20 years experience, supply flanges to more than 30 countries used for petroleum pipeline connected, city water supply project, ship building industry, power project and other general industry needed. Hyupshin Factory produce all standards flanges for global markets, flanges, elbows products have certified by KSA, TUV and othe testing organization, supply good quality products is the top aspiration for Hyupshin factory, today Hyupshin is growing to be the best supplier for flanges and pipe fittings from China.

RAW MATERIAL OF FLANGES:

· Carbon steel ( RST37.2, C22.8, C21, P250GH, S235JR, SS400, SF440A, A105, A350, Q235, 16Mn, 20Mn etc.)
· Stainless steel (A182, F321, F304, F304L, F316, F316L, SUS304, SUS304L, SUS316, SUS316L etc.)

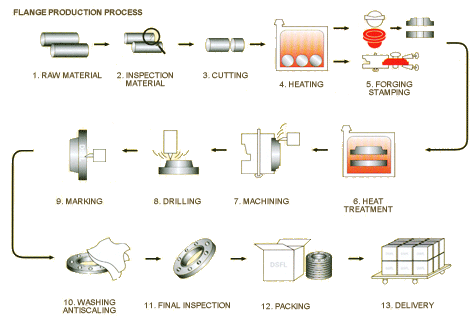

FLANGES PROCESS
